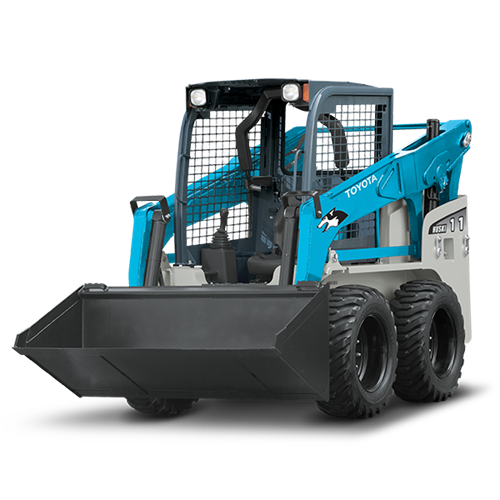

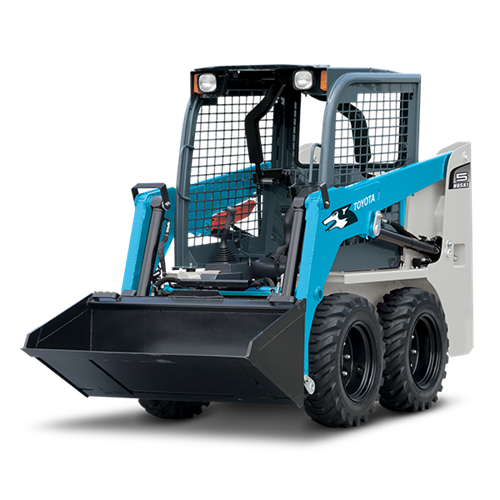

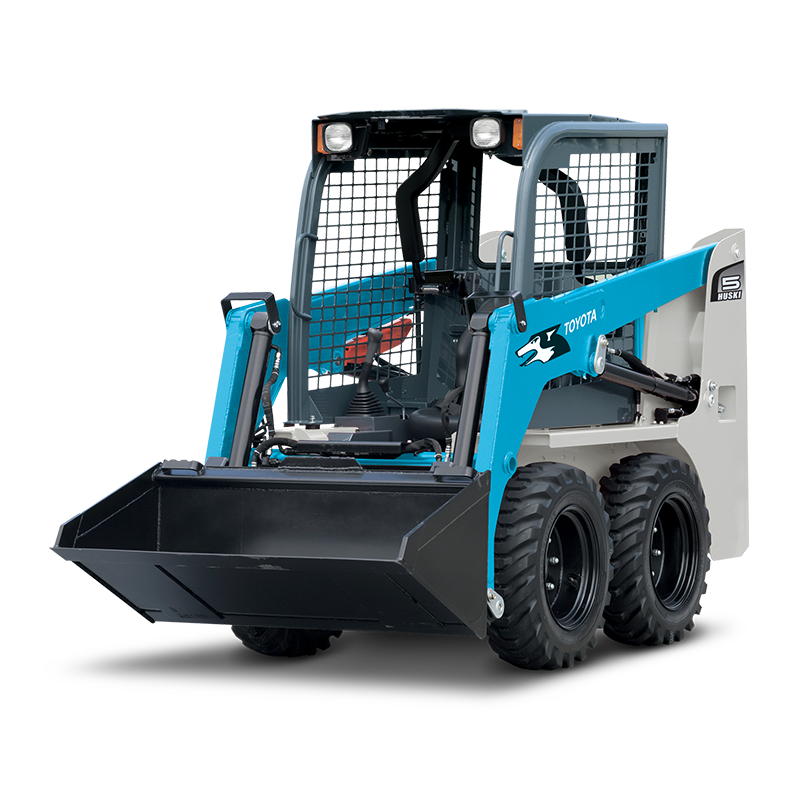

Skid Steer Loaders

Product Features

Developed and tested in Australia, the Huski 5SDK range features exceptional stability, manoeuvrability, driver comfort and safety. They also provide owners with a product offering heavy-duty construction, low running costs and a longer machine life, adding true value to our customer's business. All Toyota skid steer loaders are built to the Toyota Production System (TPS), assuring the highest levels of quality, durability and reliability.

Standard features include:

4 in 1 or G.P. Bucket available as an optional extra.

Skid Steer Loader Technology

Skid Steer Loader Technology

At Toyota Material Handling, we know how important it is to keep your Huski skid steer loader on site working for you.
That's why after evaluating available technology alternatives, we purposefully decided to retain the reliability of solid-state electronics on the Toyota Huski 5SDK skid steer loader range in order to minimise maintenance requirements and reduce possible machine downtime.

Some other features on our Huski 5SDK skid steer loader range include:

• All models use large-capacity and high pressure resistant HST motors
• The hydraulic fluid capacity has increased to maintain fluid temperature at optimum levels
• Re-positioning of the oil cooler improves cooling performance
• Pressure reduction rings for each of the lift and dump cylinders absorb impact when digging. This protects the gasket seal and improves reliability with respect to oil leaks.
• Wedge-shaped pins that move vertically instead of horizontally secure the bucket in place and reduce noise during bucket operation
  (ISO hitch only)
• Multiple safety interlock systems

Skid Steers Loaders for Australian Conditions -

Australia has some of the most rugged working conditions in the world, which is why Toyota Material Handling chose to develop and test the Huski 5SDK skid steer loader range here. This truly means the Huski 5SDK is engineered to handle Australian conditions.

• Tested in varying conditions, from sub zero to high ambient temperatures
• Air conditioning available as an option to keep an enclosed cabin at a constant and comfortable temperature. An external air-intake port and air filter prevent dust from entering the cabin
• An alkyd paint has been replaced by a urethane paint for greater protection against rust and to reduce fading.

Skid Steer Loader Design

Skid Steer Loader Design

Committed to the Operator

The Huski 5SDK skid steer loader has been designed around the needs of the operator. One of the main objectives was to design a machine that is spacious and comfortable. The easy-glide motion of the pilot lever enables effortless shifting ensuring smooth operator control.

• Large left and right assist grips on the arms and pillars greatly improve the ease of getting on and off the machine
• A large seat enables the operator to sit and exit without hindrance. The seat can slide 150mm with 10 adjustment notches to ensure optimal positioning can be achieved for operators of varying height and size.
• Colour-coded operating switches are easy to recognise and laid out on the left and right instrument panels. Easy-to-read digital meters on the left instrument panel make it easy to monitor fuel, oil and engine temperature.
• New steps help prevent work boots covered in mud from slipping when entering and exiting.
• Design innovations have reduced noise and vibration levels providing for a comfortable machine operation.
• The instrument panel comprises separate left and right sections, for outstanding upward visibility. The layout of the front and rear pillars is nearly parallel, providing a spacious operator compartment.
• Excellent Serviceability- the tilt-up cabin, rear grille that opens a full 180 degrees, and engine hood with damper provide excellent access for inspection and maintenance, helping to minimize downtime.
• The sealed cabin ensures comfortable operation when working in dusty conditions, or in foul weather. A newly designed air conditioner and heater are optionally available for comfort under extremes of hot or cold.
